high quality range of ionm electrodes

• Available in standard 12mm or 13mm lengths, with a needle diameter of 0.4mm (27 gauge)
• Designed for IOM and EEG
• 5-color, 25/box
• 6-color and 12-color, 24/box
• Lead lengths available: 1.0m, 1.5m,  2 m, 2.5m

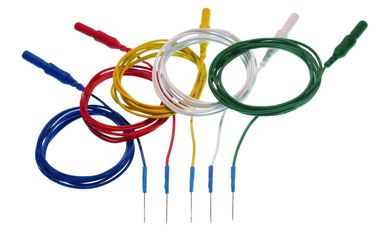

 Our twisted corkscrew needle electrodes provide excellent signal recording and effective stimulation on the patient

Lead lengths available: 1.0m, 1.5m,  2 m, 2.5m

  Our corkscrew needle electrodes provide excellent signal recording and effective stimulation on the patient.
· Double sharpening for non-traumatic insertion.
· Available with recognition hub and cable in 6 different colors.

Lead lengths available: 1.0m, 1.5m,  2 m, 2.5m

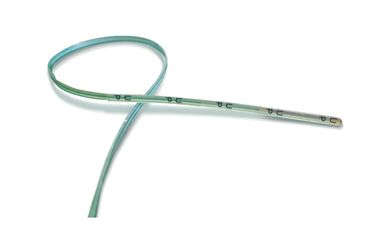

D Wave electrodes for central nervous system are disposable electrodes used for electrical stimulation and recording during the intraoperative monitoring. The D-WAVE is a multipole array of electrodes that is positioned on the spinal column for the D-wave recording. • Single use • Distance between contacts optimized to get the best recording of the D-wave • Flat recording area to get more stability during the recording • Maximum flexibility

 Number of contacts -2 contacts

                                       3 contacts

• Compatible with most neuromonitoring systems
• Optimal design for easy application
• Clear and stable signal
• Individual  sterile  packaging
• Single patient use only

• Compatible with most neuromonitoring systems
• Optimal design for easy application
• Clear and stable signal
• Individual  sterile  packaging
• Single patient use only

• Contact diameter 4 mm
• Distance between the contacts: 10 mm
• Thickness: <0.8 mm
• Contacts made of stainless steel
• Dome-shaped contacts to improve adherence
• Pre-cut strips to adapt to the areas to explore
• Width of strips: 10 mm
• Thin and flexible
• Numbered contacts
• Touch-Proof connectors (DIN 42802)
